Embedding Documents and Creating a Chatbot

Many applications involving Large Language Models (LLMs) often require user-specific data beyond their training set, such as CSV files, data from various sources, or reports. To achieve this, the process of Retrieval Augmented Generation (RAG) is commonly employed. Through this technique, you can combine your own business data (or whatever data!) with the LLM to enrich the possibilities offered by your application.

In this section we’re going to add business logic for a fictional car rental service which has a terms and conditions document that outlines how long in advance cancellations are allowed. We’re going to embed this business document for the LLM, which will use it to determine business rules accordingly.

Add the Websockets and Context Propagation extensions

Open a new terminal window, and make sure you’re at the root of your quarkus-langchain4j-app project, then run:

Maven
Quarkus CLI

./mvnw quarkus:add-extension -D"extensions=websockets-next,quarkus-langchain4j-easy-rag"

quarkus extension add websockets-next langchain4j-easy-rag

Adding temperature property to your configuration

Add the following properties to your application.properties so that it looks like:

# Set OpenAI key if you want to use the API key
# quarkus.langchain4j.openai.api-key=demo

# With Ollama
quarkus.langchain4j.openai.base-url=http://localhost:11434/v1
# Configure server to use a specific model
quarkus.langchain4j.openai.chat-model.model-name=granite3.1-dense:2b
quarkus.langchain4j.openai.embedding-model.model-name=granite3.1-dense:2b

quarkus.langchain4j.openai.log-requests=true
quarkus.langchain4j.openai.log-responses=true
quarkus.langchain4j.openai.timeout=60s

%dev.quarkus.mailer.mock=false

quarkus.langchain4j.openai.chat-model.temperature=0.0
quarkus.langchain4j.easy-rag.path=src/main/resources/catalog

booking.daystostart=1(3)
booking.daystoend=3
booking.firstname=john
booking.lastname=doe
booking.number=123-456

quarkus.langchain4j.openai.chat-model.model-name=gpt-4o (4)

1	The "temperature" parameter in AI language models controls the randomness of text generation. Lower values result in more predictable outputs, while higher values encourage creativity and diversity in responses.
2	Path to where documents are stored for the Retrieval Augmentation Generation (ie. the documents the AI model will use to build local knowledge)
3	Sample booking data
4	The specific model to use. IMPORTANT: gpt3.5-turbo is much cheaper but the results will be slower and less reliable.

Embedding the business document

If you don’t provide a model that supports embeddings and tools you will still be able to go through this exercise but the "Tools" functions won’t be called, resulting in unexpected answers. See the previous "Agents and Tools" chapter for more information.

Let’s provide a document containing the service’s terms of use:

Create a new folder in src/main/resources/catalog and add a new file named miles-of-smiles-terms-of-use.txt in this folder. Then add the following content to it:

Miles of Smiles Car Rental Services Terms of Use

1. Introduction
These Terms of Service (“Terms”) govern the access or use by you, an individual, from within any country in the world, of applications, websites, content, products, and services (“Services”) made available by Miles of Smiles Car Rental Services, a company registered in the United States of America.

2. The Services
Miles of Smiles rents out vehicles to the end user. We reserve the right to temporarily or permanently discontinue the Services at any time and are not liable for any modification, suspension or discontinuation of the Services.

3. Bookings
3.1 Users may make a booking through our website or mobile application.
3.2 You must provide accurate, current and complete information during the reservation process. You are responsible for all charges incurred under your account.
3.3 All bookings are subject to vehicle availability.

4. Cancellation Policy
4.1 Reservations can be cancelled up to 7 days prior to the start of the booking period for a full refund
4.3 If the booking starts within less than 7 days, cancellations are not permitted.

5. Use of Vehicle
5.1 All cars rented from Miles of Smiles must not be used:
for any illegal purpose or in connection with any criminal offense.
for teaching someone to drive.
in any race, rally or contest.
while under the influence of alcohol or drugs.

6. Liability
6.1 Users will be held liable for any damage, loss, or theft that occurs during the rental period.
6.2 We do not accept liability for any indirect or consequential loss, damage, or expense including but not limited to loss of profits.

7. Governing Law
These terms will be governed by and construed in accordance with the laws of the United States of America, and any disputes relating to these terms will be subject to the exclusive jurisdiction of the courts of United States.

8. Changes to These Terms
We may revise these terms of use at any time by amending this page. You are expected to check this page from time to time to take notice of any changes we made.

9. Acceptance of These Terms
By using the Services, you acknowledge that you have read and understand these Terms and agree to be bound by them.
If you do not agree to these Terms, please do not use or access our Services.

Notice in the above document that the rules state it is not allowed to cancel a booking within 7 days prior to the start of the booking.

Remember how we set the quarkus.langchain4j.easy-rag.path in the application.properties file? It points to this same directory, and thanks to the langchain4j-easy-rag extension any document in this folder will be scanned and added to the context of the LLM.

Create the Booking structure

Create a new Customer Java record in src/main/java in the com.redhat.developers package with the following contents:

package com.redhat.developers;

public record Customer(String name, String surname) {
}

Now we create a Booking record as well.

Create a new Booking Java record in src/main/java in the com.redhat.developers package with the following contents:

package com.redhat.developers;

import java.time.LocalDate;

public record Booking(String bookingNumber, LocalDate bookingFrom, LocalDate bookingTo, Customer customer) {
}

Create the Booking functionality

Let’s create a simplified Booking service for the LLM to call:

Create a new BookingService Java class in src/main/java in the com.redhat.developers package with the following contents:

package com.redhat.developers;

import java.time.LocalDate;
import java.util.Map;

import org.eclipse.microprofile.config.inject.ConfigProperty;

import jakarta.enterprise.context.ApplicationScoped;
import jakarta.inject.Inject;

@ApplicationScoped
public class BookingService {

    @Inject
    @ConfigProperty(name = "booking") (1)
    Map<String, String> booking;

    public Booking getBookingDetails(String bookingNumber, String customerName, String customerSurname) {
        ensureExists(bookingNumber, customerName, customerSurname);
        LocalDate bookingFrom = LocalDate.now().plusDays(Long.parseLong(booking.get("daystostart")));
        LocalDate bookingTo = LocalDate.now().plusDays(Long.parseLong(booking.get("daystoend")));
        // Retrieval from DB mocking
        Customer customer = new Customer(customerName, customerSurname);
        return new Booking(bookingNumber, bookingFrom, bookingTo, customer);
    }

    public void cancelBooking(String bookingNumber, String customerName, String customerSurname) {
        ensureExists(bookingNumber, customerName, customerSurname);

        // TODO add logic to double check booking conditions in case the LLM got it
        // wrong.
        // throw new BookingCannotBeCancelledException(bookingNumber);
    }

    private void ensureExists(String bookingNumber, String customerName, String customerSurname) {
        // Check mocking
        if (!(bookingNumber.equals(booking.get("number"))
                && customerName.toLowerCase().equals(booking.get("firstname"))
                && customerSurname.toLowerCase().equals(booking.get("lastname")))) {
            throw new BookingNotFoundException(bookingNumber);
        }
    }
}

class BookingNotFoundException extends RuntimeException {

    public BookingNotFoundException(String bookingNumber) {
        super("Booking " + bookingNumber + " not found");
    }
}

class BookingCannotBeCancelledException extends RuntimeException {

    public BookingCannotBeCancelledException(String bookingNumber) {
        super("Booking " + bookingNumber + " cannot be canceled");
    }
}

1	Retrieve a single booking from the application.properties file. (in the real world this data would likely come from a DB instead :) )

Now we define a BookingTools singleton that will serve our AI with proper tools.

Create a new BookingTools Java class in src/main/java in the com.redhat.developers package with the following contents:

package com.redhat.developers;

import jakarta.inject.Singleton;

import dev.langchain4j.agent.tool.Tool;

@Singleton
public class BookingTools {

    private final BookingService bookingService;

    public BookingTools(BookingService bookingService) {
        this.bookingService = bookingService;
    }

    @Tool
    public Booking getBookingDetails(String bookingNumber, String customerName, String customerSurname) {
        return bookingService.getBookingDetails(bookingNumber, customerName, customerSurname);
    }

    @Tool
    public void cancelBooking(String bookingNumber, String customerName, String customerSurname) {
        bookingService.cancelBooking(bookingNumber, customerName, customerSurname);
    }
}

Create the customer support service

Now we create the whole structure for our AI-based customer service.

Create a new AssistantForCustomerSupport Java class in src/main/java in the com.redhat.developers package with the following contents:

package com.redhat.developers;

import dev.langchain4j.service.SystemMessage;
import dev.langchain4j.service.UserMessage;
import io.quarkiverse.langchain4j.RegisterAiService;
import jakarta.enterprise.context.SessionScoped;

@RegisterAiService(tools = BookingTools.class)
@SessionScoped
public interface AssistantForCustomerSupport {

    @SystemMessage({
            "You are a customer support agent of a car rental company named 'Miles of Smiles'.",
            "Before providing information about booking or cancelling booking, you MUST always check:",
            "booking number, customer name and surname and the Cancellation policy in the Terms of Use",
            "Before cancelling, confirm with the customer that they want to proceed",
            "Do NOT cancel the booking if the start date is not compliant with the Cancellation policy in the Terms of Use",
            "Today is {current_date}."
    })
    String chat(@UserMessage String userMessage);
}

And finally our chat implementation that will do the whole thing.

Create a new ChatSocket Java record in src/main/java in the com.redhat.developers package with the following contents:

package com.redhat.developers;

import io.quarkus.websockets.next.OnOpen;
import io.quarkus.websockets.next.OnTextMessage;
import io.quarkus.websockets.next.WebSocket;

@WebSocket(path = "/chat")
public class ChatSocket {

    private final AssistantForCustomerSupport assistant;

    public ChatSocket(AssistantForCustomerSupport assistant) {
        this.assistant = assistant;
    }

    @OnOpen
    public String onOpen() {
        return "Hello from Miles of Smiles, how can we help you?";
    }

    @OnTextMessage
    public String onMessage(String userMessage) {
        return assistant.chat(userMessage);
    }
}

Create the chat frontend

Finally, let’s add our chat frontend.

Create a new chat-assistant.html file in src/main/resources/META-INF/resources with the following contents:

<!DOCTYPE html>
<html>

<head>
    <meta charset="UTF-8">
    <title>Quarkus Langchain4j Chat!</title>
    <link rel="stylesheet" type="text/css" href="https://cdnjs.cloudflare.com/ajax/libs/patternfly/3.24.0/css/patternfly.min.css">
    <link rel="stylesheet" type="text/css" href="https://cdnjs.cloudflare.com/ajax/libs/patternfly/3.24.0/css/patternfly-additions.min.css">

    <style>
        #chat {
          resize: none;
          overflow: hidden;
          min-height: 300px;
          max-height: 300px;
      }
    </style>
</head>

<body>
        <nav class="navbar navbar-default navbar-pf" role="navigation">
                <div class="navbar-header">
                  <a class="navbar-brand" href="/">
                   <p><strong>>> Quarkus Langchain4j Chat!</strong></p>
                  </a>
                </div>
        </nav>
    <div class="container">
      <br/>
      <div class="row">
          <textarea data-testid="chatwin" class="col-md-8" id="chat"></textarea>
      </div>
      <div class="row">
          <input class="col-md-6" id="msg" type="text" placeholder="enter your message">
          <button class="col-md-1 btn btn-primary" id="send" type="button" disabled>send</button>
      </div>

      </div>

    <script src="https://cdnjs.cloudflare.com/ajax/libs/jquery/3.2.1/jquery.min.js"></script>
    <script src="https://cdnjs.cloudflare.com/ajax/libs/twitter-bootstrap/3.3.7/js/bootstrap.min.js"></script>
    <script src="https://cdnjs.cloudflare.com/ajax/libs/patternfly/3.24.0/js/patternfly.min.js"></script>

    <script type="text/javascript">
      var connected = false;
      var socket;

      $( document ).ready(function() {
          connect();
          $("#send").click(sendMessage);

          $("#name").keypress(function(event){
              if(event.keyCode == 13 || event.which == 13) {
                  connect();
              }
          });

          $("#msg").keypress(function(event) {
              if(event.keyCode == 13 || event.which == 13) {
                  sendMessage();
              }
          });

        $("#chat").change(function() {
            scrollToBottom();
          });

          $("#name").focus();
      });

      var connect = function() {
          if (! connected) {
              socket = new WebSocket("ws://" + location.host + "/chat");
              socket.onopen = function(m) {
                  connected = true;
                  console.log("Connected to the web socket");
                  $("#send").attr("disabled", false);
                  $("#connect").attr("disabled", true);
                  $("#name").attr("disabled", true);
                  $("#msg").focus();
              };
              socket.onmessage =function(m) {
                  console.log("Got message: " + m.data);
                  $("#chat").append("[Assistant] " + m.data + "\n");
                  scrollToBottom();
              };
          }
      };

      var sendMessage = function() {
          if (connected) {
              var value = $("#msg").val();
              console.log("Sending " + value);
              $("#chat").append("[You] " + value + "\n")
              socket.send(value);
              $("#msg").val("");
          }
      };

      var scrollToBottom = function () {
        $('#chat').scrollTop($('#chat')[0].scrollHeight);
      };

    </script>
</body>

</html>

Invoke the endpoint

You can check your prompt implementation by pointing your browser to http://localhost:8080/chat-assistant.html

Try cancelling a booking for booking number 123-456 with name John Doe. If everything goes well, the booking should be rejected, since we have specified the start date to be in 1 day.

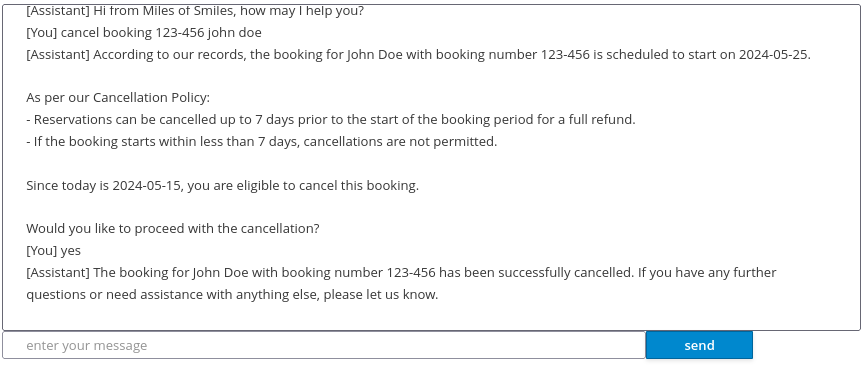

An example of output (can vary on each prompt execution):

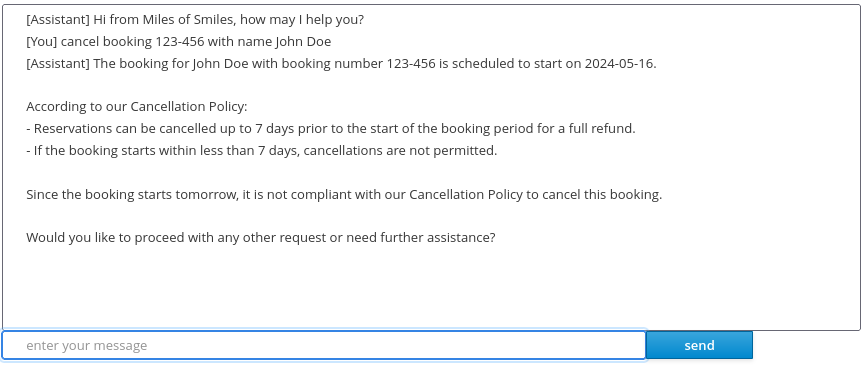

Now change the value of booking.daystostart in your application.properties to > 7 and refresh the browser window. Try cancelling again, and you should see that this time we are allowed to cancel the reservation.

For an extra challenge, feel free to play around with the SystemMessage in AssistantForCustomerSupport.java, or perhaps change the BookingService.java to call a database that contains customer and booking information. And see if bookings effectively get cancelled or not :)
